Custom U Shape SiC Heating Elements

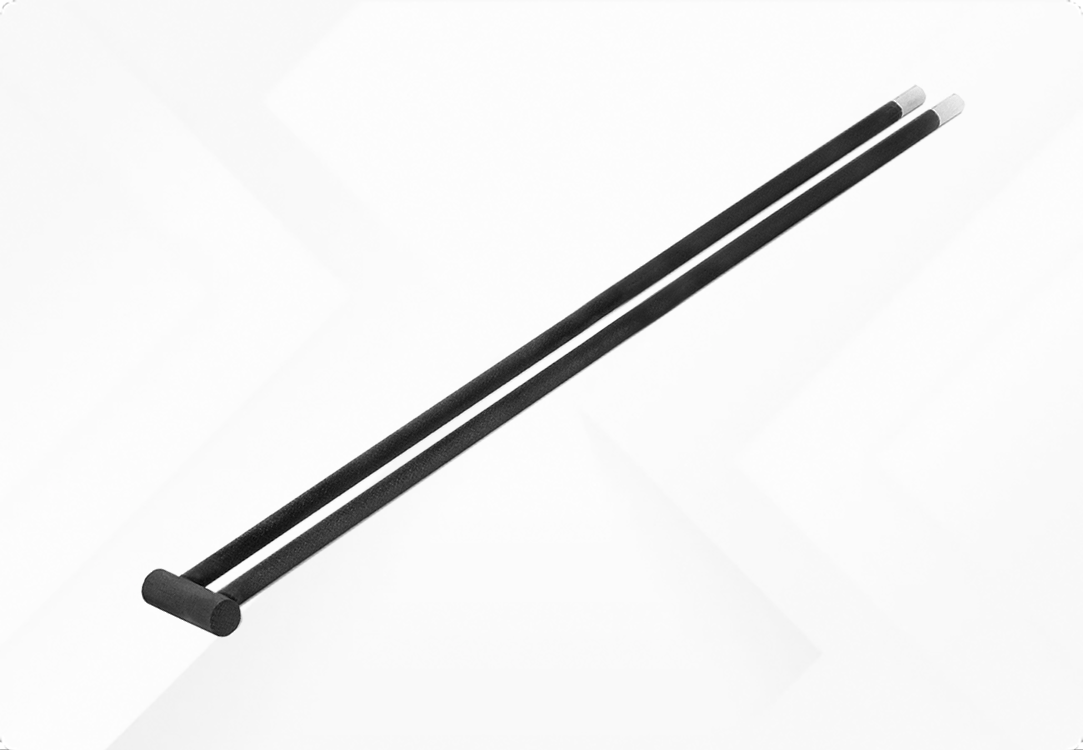

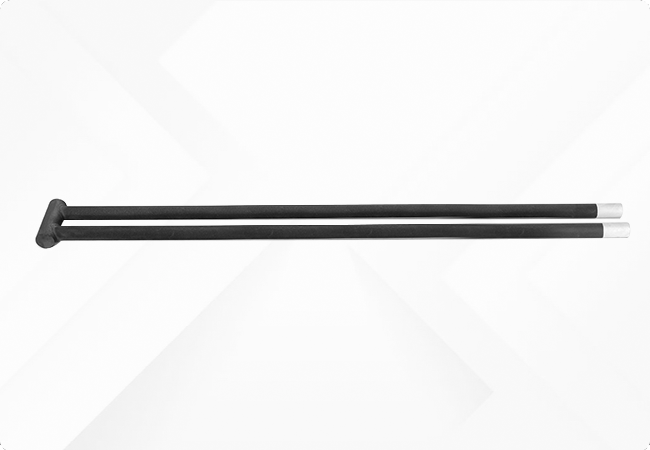

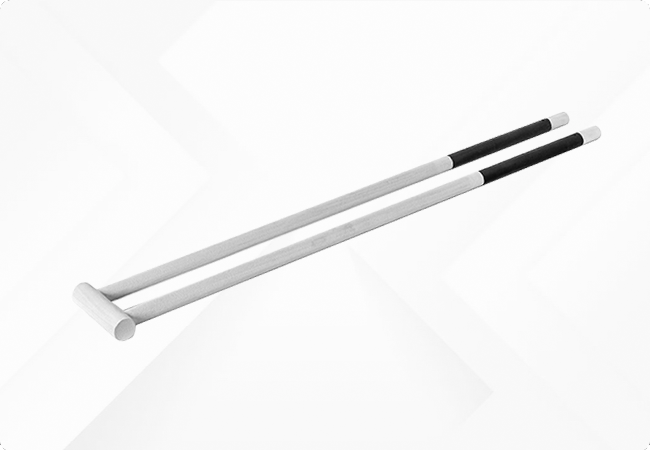

Optimize your single-phase heating systems with U Shape SiC Heating Elements, featuring a unique U-shaped design with terminals at one end. This innovative construction reduces cold ends and terminations, delivering significant energy savings and lower operating costs. At CVSIC, with over 15 years of experience in silicon carbide manufacturing, we craft these elements from premium materials for exceptional durability and performance. Fully customizable to your specifications, our U Shape SiC Heating Elements offer reliable, cost-effective solutions for industrial furnaces at competitive prices.

Model: U Shape SiC Heating Elements

Tube Diameter:8-65mm

Length: 5-6600mm

Working temperature: Up to 1600 ℃

Voltage: 110-480v

SiC Content: ≥99%

Services Offered: Customization, Wholesale, Distributors

Origin: China

After-sales:Overseas service center available

Send Email

Inquiry Now

U Shape SiC Heating Elements Description

Are rising energy costs and unreliable heating elements slowing your operations? Our U Shape SiC Heating Elements are designed to solve these challenges. Constructed with a U-shaped form and terminals at one end, they minimize cold ends for enhanced energy efficiency—an ideal fit for single-phase power systems. Based in Henan Province, China, CVSIC brings over 15 years of expertise to deliver high-quality, customizable silicon carbide heating elements. Whether you’re in ceramics, glass production, or powder metallurgy, our competitively priced solutions ensure consistent performance tailored to your needs.

U Shape SiC Heating Elements Features

Energy-Saving Design: Reduced cold ends and terminations lower heat loss, cutting power consumption.
High Durability: Made from top-grade silicon carbide, resistant to oxidation and corrosion up to 1600°C.
Customizable Dimensions: Outer diameters from 14mm to 30mm, hot zones up to 800mm, and adjustable shank spacing.
Long-Lasting Performance: Advanced manufacturing ensures a prolonged service life, even in extreme conditions.
Precise Resistance Options: Available in ranges like 1.4–7.2 ohms, tailored to your furnace requirements.

U Shape SiC Heating Elements Applications

Our U Shape SiC Heating Elements excel in industries needing efficient, high-temperature heating:

Ceramics Industry: Perfect for kilns requiring energy-efficient, uniform heat.
Glass Manufacturing: Ensures consistent melting and forming processes.
Powder Metallurgy: Supports high-temperature sintering with reliable output.
Specialized Furnaces: Ideal for custom single-phase heating systems in machinery and magnet production.

Customization Services

Your furnace deserves a heating element that fits perfectly. At CVSIC, we specialize in custom U Shape SiC Heating Elements, leveraging our 15+ years of experience to meet your exact needs:

Dimensions: Tailor OD, HZ, CZ, OL, and A to your specifications.
Resistance: Adjust resistance (e.g., 2.24Ω) for optimal performance.
Unique Designs: Adaptable to your single-phase system and operating conditions.

Submit your requirements—e.g., OD=20mm, HZ=300mm, CZ=400mm, OL=700mm, A=60mm, Resistance=2.24Ω—and we’ll deliver a precision-engineered solution. Contact us for a free consultation!

Why Choose Us?

Over 15 Years of Expertise: A trusted manufacturer from Henan Province, China, specializing in SiC heating elements.
Competitive Pricing: Factory-direct costs ensure high quality at affordable rates.
Reliable Quality: Premium materials and strict quality control guarantee lasting performance.
Customization Leader: We solve your heating challenges with bespoke designs.
Global Service: Proven export experience with fast shipping and dedicated support.
