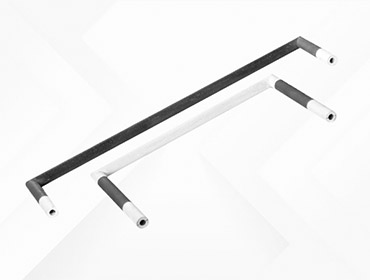

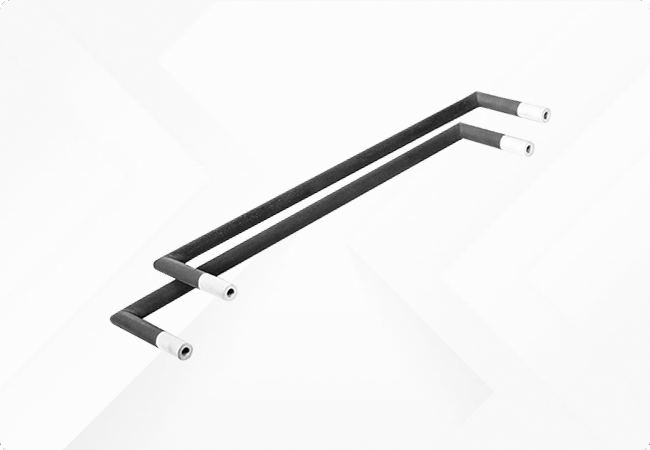

RA-Type Sic Heating Elements

• Right-Angle Design: Two cold ends welded at 90 degrees to the hot zone, optimizing top-mounted terminal connections.
• High-Temperature Performance: Operates up to 1425°C (2600°F) with high-density silicon carbide construction.
• Corrosion Resistance: Resists oxidation and chemical attack, ensuring durability in harsh environments.
• Energy Efficiency: Low-resistance cold ends minimize power consumption, reducing operational costs.
• Customizable Specifications: Tailored outer diameter (OD), hot zone (HZ), cold zone (CZ), and resistance to match your furnace requirements.

CVSIC RA-Type Sic Heating Elements Application

Our RA Type SiC Heating Elements excel in industries requiring robust, high-temperature heating:

• Metallurgy: Ideal for launders and furnaces processing non-ferrous metals like aluminum and zinc.
• Ceramics Industry: Perfect for kilns needing durable, corrosion-resistant heating for sintering and firing.
• Float Glass Production: Supports top-connected furnaces with consistent heat for glass forming.
• Industrial Furnaces: Suited for custom setups requiring easy installation through furnace roofs.

Customization Services

At CVSIC, we specialize in bespoke heating solutions. With over 15 years of expertise, we offer fully customizable RA Type SiC Heating Elements:

• Dimensions: Specify OD, HZ, CZ, and OL for seamless integration (e.g., 25/300/900).
• Resistance Tuning: Adjust resistance (e.g., 1.59Ω) for precise heat control.
• Special Configurations: Adaptable to your furnace type, atmosphere, or operational needs, including support holes for roof installation.

Share your specs—e.g., OD=25mm, HZ=300mm, CZ=300mm, OL=900mm, Resistance=1.59Ω—and we’ll deliver a precision-engineered solution. Contact us for a free consultation or quote!

Why Choose Us?

• 15+ Years of Experience: A trusted SiC heating element manufacturer from Henan Province, China, with a proven track record.
• Competitive Pricing: Factory-direct costs ensure premium quality at budget-friendly rates.
• Reliable Quality: High-density silicon carbide and rigorous quality control guarantee durability and performance.
• Customization Expertise: We craft tailored solutions to meet your unique heating challenges.
• Global Support: Export experience to over 40 countries with fast shipping and dedicated after-sales service.

Order Information

To order your custom RA Type SiC Heating Elements, provide the following details:

• OD (Outer Diameter): e.g., 25mm
• HZ (Hot Zone Length): e.g., 300mm
• CZ (Cold Zone Length): e.g., 300mm
• OL (Overall Length): e.g., 900mm
• Resistance (in ohms): e.g., 1.59Ω

Sample Order Example: 25/300/900/1.59Ω
