DB type silicon carbide heater rod

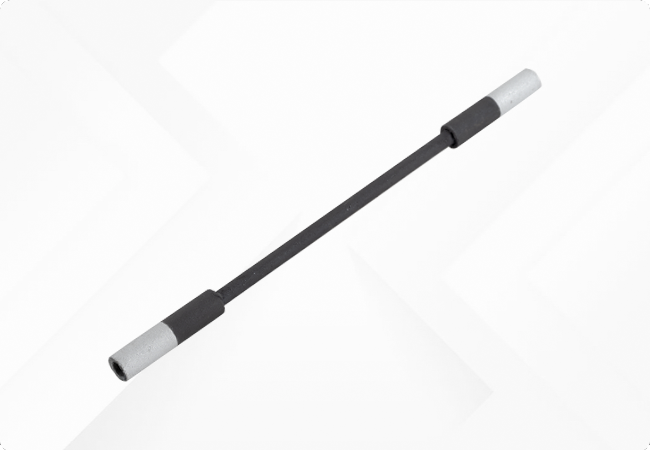

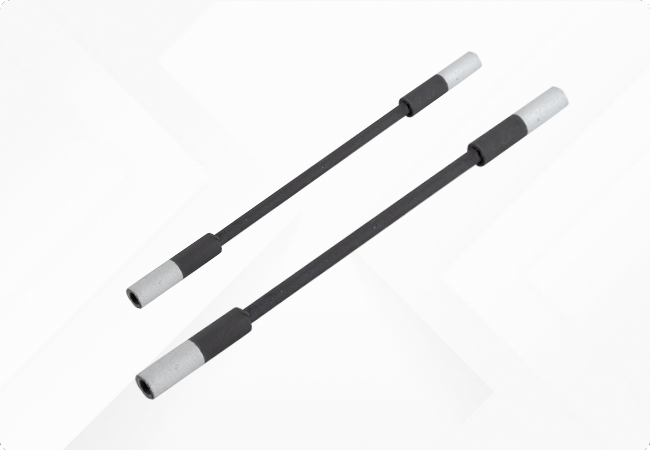

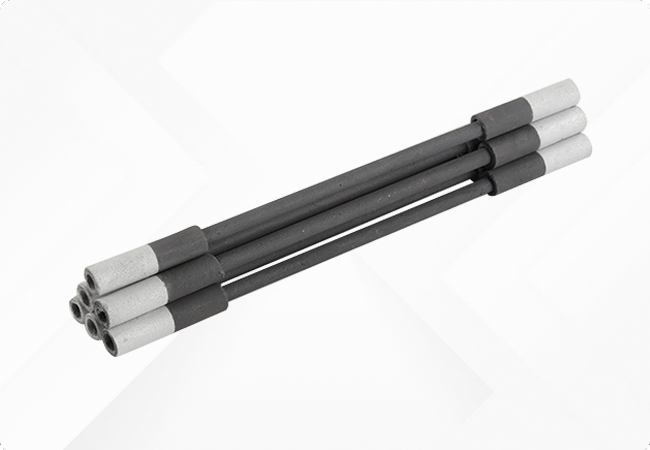

DB type silicon carbide heater rods consist of a hot zone with high electrical resistivity and rigidly connected with two thickened cold zones of low resistance owing to their larger diameter and special manufacturing technique.

Model: DB type elements

Tube Diameter:8-65mm

Length: 5-6600mm

Working temperature: Up to 1600 ℃

Voltage: 110-480v

SiC Content: ≥99%

Services Offered: Customization, Wholesale, Distributors

Origin: China

After-sales:Overseas service center available

Send Email

Inquiry Now

DB Type SiC Heating Elements Description

Elevate your furnace performance with DB Type SiC Heating Elements, featuring a high-resistivity hot zone and thickened, low-resistance cold ends for superior durability and efficiency. Designed for demanding high-temperature applications, these silicon carbide heater rods offer long service life and energy savings. At CVSIC, with over 15 years of expertise, we provide customizable DB Type SiC Heating Elements crafted from premium materials at competitive prices. Perfect for ceramics, metallurgy, and electronics, these elements ensure reliable heating tailored to your needs.

DB Type SiC Heating Elements Features

Enhanced Cold Ends: Thickened, low-resistance cold zones reduce heat loss and extend element life.
High-Temperature Resilience: Operates up to 1600°C, resisting oxidation and corrosion.
Energy Efficient: Optimized design minimizes power consumption, lowering operating costs.
Customizable Design: Tailored outer diameter (OD), hot zone (HZ), cold zone (CZ), and resistance to fit your furnace.
Versatile Installation: Self-supporting structure allows vertical or horizontal mounting with ease.

DB Type SiC Heating Elements Application

Our DB Type SiC Heating Elements are trusted across a range of industries:

Ceramics Industry: Perfect for small box furnaces and kilns requiring precise heating.
Electronics & Magnetic Materials: Supports high-temperature processes for consistent results.
Powder Metallurgy: Ideal for sintering and experimental furnaces with reliable heat output.
Specialized Uses: Suited for tunnel furnaces, muffle furnaces, and precision casting applications.

DB Type SiC Heating Elements Customization Services

Every furnace is unique, and we’re here to meet your exact needs. With over 15 years of expertise, CVSIC offers fully customizable DB Type SiC Heating Elements:

Dimensions: Specify OD, HZ, CZ, and OL for a perfect fit.
Resistance Options: Tailor resistance (e.g., 1.6–3.4Ω) for optimal heat control.
Special Features: Adaptable to your furnace type, atmosphere, or operational demands.

Provide your requirements—e.g., OD=25mm, HZ=400mm, CZ=300mm, OL=700mm, Resistance=1.6Ω—and we’ll craft a solution that integrates seamlessly. Contact us for a free consultation!

Characteristics And Nature

Mechanical Strength

Silicon Molybdenum Rods Possess High Mechanical Strength, Which Contributes To Their Durability And Reliability In Demanding Environments.

Versatility

Mosi2 Rods Are Suitable For A Wide Range Of Applications, Including Semiconductor Manufacturing, Heating Elements, And High-Performance

High Density

The Rods Typically Have A High Density, Which Contributes To Their Strength And Stability In Various Uses.

Corrosion Resistance

Mosi2 Materials Are Resistant To Oxidation And Corrosion, Enhancing Their Longevity And Performance In Harsh Chemical Environments.

If You Have Any Questions, Please Feel Free To Contact Us!

Our Team Of Experts Is Ready To Assist You In Charting Your Course To Success, Answering All Your Product-Related Questions, Including.

Our Product Portfolio And Pricing Information

Tailored Solutions To Suit Your Business Needs

Reseller/Integrator Co-Operation Policy, Etc.

Please Fill Out The Form On The Right Or Send An Email To [email protected]

Quick Quote Submission

Please Fill Out Our Quotation Request Form Or Send An Email To [email protected] To Receive Customized Quotations From Our Product Experts.

Our product line covers many fields such as silicon carbon rod, silicon molybdenum rod, tungsten molybdenum products, graphite products and silicon carbide products, furnace, serving domestic and foreign customers.

Products

SiC Heating Element & SiC Heater

MoSi2 Heating Eements & MoSi2 Heater

Custom heating elements

Furnace

Tel：+86 15936296688

Email： [email protected]

Add： Sanlizhuang Industrial Park, Dajindian Town, Dengfeng City, Henan Province, China

Specific gravity	2.6-2.8g/cm³	Bend strength	>300kg
Hardness	>9MOH’S	Tensile strength	>150kg/cm³
Porosity rate	<30%	Radiancy	0.85
