Characteristics of Molybdenum Disilicide Heating Element

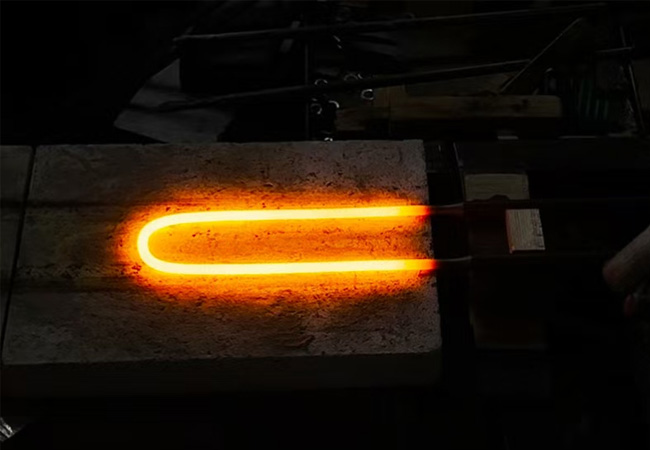

Molybdenum Silicon Bar (Molybdenum Disilicide Heating Element, abbreviated as MoSi₂ Heating Element) is a kind of high-temperature electric heating element made of molybdenum disilicide as the main material, which is widely used in industry and scientific research field due to its unique physical and chemical properties. Molybdenum disilicide rods are known for their excellent high temperature resistance, oxidation resistance and long life, and are the core components in many high temperature heating equipment. In this article, we will discuss in detail the main features of silicon molybdenum rods and their advantages in practical applications.

1. Superior temperature resistance
One of the most notable features of silicon molybdenum rods is their ability to operate stably at extremely high temperatures. The maximum operating temperature can reach 1800°C, and even higher in some special models. This characteristic makes them particularly suitable for applications requiring ultra-high temperature environments, such as ceramic sintering, glass melting and metal heat treatment. In contrast to conventional metal heating elements, silicomolybdenum rods do not soften or melt at high temperatures and maintain their structural stability over long periods of time.

2. Excellent oxidation resistance
Molybdenum silica rods perform well in high-temperature oxidizing atmospheres, thanks to a dense protective film of silicon dioxide (SiO₂) that naturally forms on their surfaces at high temperatures. This protective film prevents further oxygen penetration and oxidative degradation of the material, thus significantly extending its service life. This feature gives SiMo rods an unrivaled advantage in air or oxygen-rich environments, especially in high-temperature furnaces and kilns that operate for long periods of time.

3. High thermal efficiency and uniform heating
Silicon-molybdenum rods have good thermal conductivity and a low coefficient of thermal expansion, enabling them to heat up quickly and provide uniform heat distribution. This efficient thermal conductivity not only improves the energy efficiency of the heating equipment, but also ensures temperature uniformity of the heating object and avoids localized overheating or cold spots. Silicon-molybdenum rods perform particularly well in applications where precise temperature control is required, such as semiconductor diffusion furnaces or high-temperature laboratory furnaces.

4. High chemical stability
Silicon-molybdenum rods are highly resistant to most chemicals and can remain stable in acidic or alkaline atmospheres. Although additional protection is required in strongly reducing environments (e.g. hydrogen or carbon atmospheres), their chemical inertness in conventional industrial environments makes them suitable for a wide range of demanding conditions. For example, silicomolybdenum rods continue to operate reliably in heating processes involving corrosive gases in chemical production.

5. Long service life and low maintenance requirements
Thanks to their oxidation resistance and structural stability, molybdenum silica rods generally have a longer service life than conventional metal heating elements. Under the right operating conditions, they can operate for thousands of hours without frequent replacement. In addition, molybdenum silica rods require less maintenance, as the user only needs to check the mounting connections periodically, which significantly reduces equipment downtime and operating costs.

6. Flexible shape design
Silicon-molybdenum rods can be manufactured in a variety of shapes through different manufacturing processes, such as U-shaped, W-shaped or straight rods, in order to adapt them to the needs of different heating equipment. This flexibility allows easy integration into various furnace designs, whether installed horizontally or suspended vertically. The segmented design of the cold end and heating section also facilitates connection to the power supply and improves ease of installation.

7. Characteristics of resistance change with temperature
The resistance value of silicon molybdenum rods increases as the temperature rises, a characteristic that has both advantages and points to note in practical applications. The advantage lies in its self-regulating ability to prevent overloading, while attention should be paid to the need to match the appropriate power control system when designing the circuit to ensure accurate temperature control.

Precautions in use
Despite the many advantages of silicomolybdenum rods, there are still some details that need to be taken into account when using them. For example, at low temperatures (below 400°C), “cryogenic oxidation” (formation of MoO₃) can occur on the surface of the rod, so it is recommended to avoid prolonged operation in this temperature range. In addition, their high brittleness requires careful handling during transportation and installation to avoid mechanical damage.

Conclusion
Silicon molybdenum rods have become star products in the field of high-temperature heating due to their ultra-high temperature resistance, excellent oxidation resistance, high thermal efficiency, and long service life. Whether in industrial furnaces and kilns, semiconductor manufacturing, or laboratory research, silicon molybdenum rods have won wide recognition for their reliability and high efficiency. With the continuous progress of material technology, the performance and application scope of silicon molybdenum rods are expected to be further enhanced, providing quality heating solutions for more industries.
